Does your Harley not start right? Something could be wrong. Today we will learn about checking a voltage regulator. It’s a big part but has an easy check. Keep your Harley happy!
Credit: california-motorcycles.com
What is a Voltage Regulator?
A voltage regulator is a part in your Harley. It makes sure that your bike’s battery gets the right electricity. It also stops too much power, which can hurt your battery. Think of it as a guard for your bike’s power!
Credit: m.youtube.com
Tools You Will Need
- Multimeter (a tool that measures electricity)
- Basic hand tools (like screwdrivers and wrenches)
- Motorcycle’s Service Manual (a book that tells you how things work)
- Gloves and safety glasses
Steps to Check Your Harley’s Voltage Regulator
Step 1: Safety First!
Before you start, make sure your bike isn’t running. It should be cool to the touch. This keeps you safe. Also, wear your gloves and glasses!
Step 2: Find Voltage Regulator
Grab your service manual. Look for where the voltage regulator is. It’s often at the front of the bike. It looks like a metal box with wires.
Step 3: Inspect The Regulator
Look at the regulator with your eyes. Do you see broken parts or burns? Does it look like something is wrong? If yes, you might need a new one. If no, let’s keep checking.
Step 4: Measure Battery Voltage

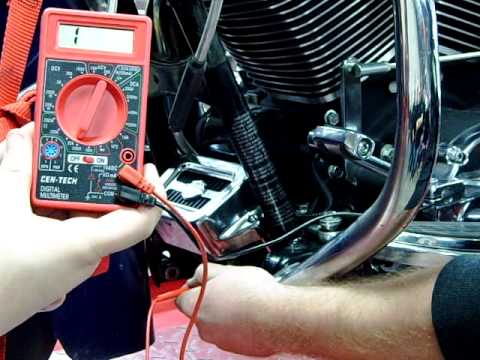

Take out your multimeter. You’ll use it to see the battery’s power. Make sure the bike is off and the engine is cool. Turn the multimeter to measure volts. Touch the multimeter’s red lead to the battery’s positive (+) post. Touch the black lead to the negative (-) post. Your Harley should have 12.5 to 13 volts. Less than that? Your battery might be sad. Charge it up and check again!
Step 5: Start The Bike And Test Again
Now, start your bike. Be careful! Let it idle. This means let it run without giving it gas. Check the voltage again. It should be between 13.8 to 14.5 volts now. Not right? Your regulator might be the trouble.
Step 6: Check The Regulator’s Output
Turn off your bike again. Let’s see what the regulator is doing. Find the wires coming out of the regulator. Check the manual to know which wires to test.
Set your multimeter to measure AC volts for this. Touch the leads to the wires I said. You want to see 0 volts. More than 0 means the regulator is not stopping the extra power!
Step 7: Consult Your Service Manual For Specs
Each Harley has its own numbers for how much power should be. Open your service manual to find these numbers. They tell you what is okay and what is not.
Step 8: Final Decision
If you see the wrong numbers, it might be time for a new regulator. No worries! With your manual and new tools, you can fix this!
Checklist Table
Check Task | Normal Condition | If It’s Wrong |
---|---|---|
Visual Inspection | No damage or burns | Replace regulator |
Battery Voltage (Bike Off) | 12.5 – 13 volts | Charge battery |
Battery Voltage (Bike On) | 13.8 – 14.5 volts | Check regulator output |
Regulator Output | 0 AC volts | Replace regulator |
Extra Tips for a Happy Harley
- Keep your bike’s battery clean. A dirty battery can give you wrong test results.
- Always double-check your service manual for the right steps.
- If you’re not sure, ask for help from someone who knows about Harleys.
- Take care of your tools. They help you take care of your bike.
Checking your Harley’s voltage regulator is smart. It keeps your bike running well. Now you know how to check it like a pro! Remember, if you’re stuck, your service manual is your best friend. Ride safely and have fun on the road!
Frequently Asked Questions For How To Check A Harley Voltage Regulator
What Is A Harley Voltage Regulator?
A Harley voltage regulator maintains the motorcycle’s charging system by ensuring the battery receives the correct voltage.
How To Test A Harley Voltage Regulator?
To test a Harley voltage regulator, you’ll need a multimeter to measure the output voltage at the battery terminals.
What Are Signs Of A Bad Voltage Regulator?
Symptoms of a bad voltage regulator include erratic instrument readings, dead batteries, and dimming or flickering lights.
Which Tools Do I Need For Voltage Regulator Checks?
You will need a multimeter and basic hand tools to perform a voltage regulator check on a Harley.
